PRESSURE GAUGE & temperature GAUGE MANUFACTURER IN INDIA
Top Picks For You

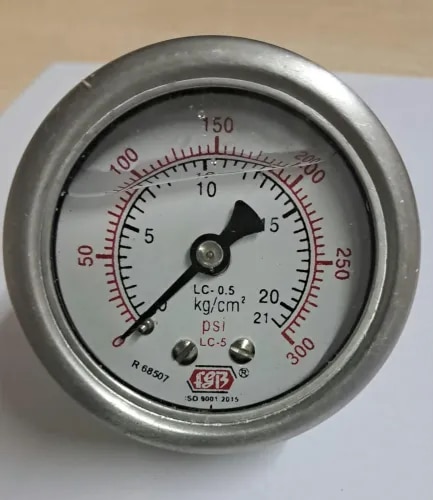

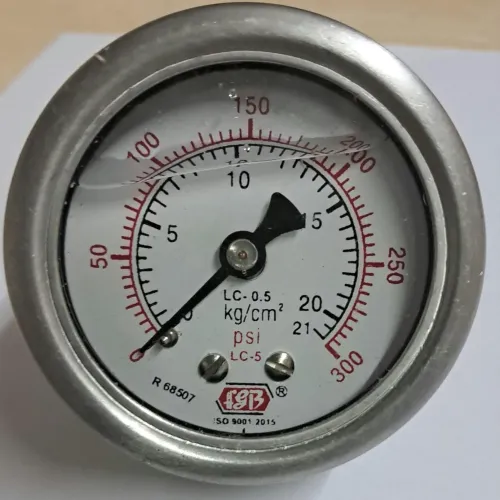

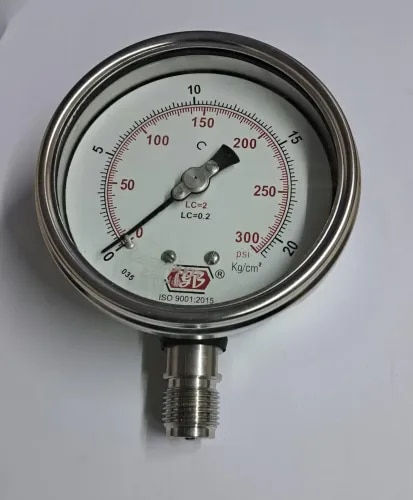

4'' DIAL0-300 PSI 1/2 BSP BOTTOM COMPLETE SS
• Dial Size: 4 inches (100 mm) nominal diameter for clear long-distance visibility. • Mounting Entry: Direct Vertical Bottom Entry (Stem Mount). • Process Connection: 1/2" BSP (British Standard Pipe) Male thread. • Window / Lens: Shatterproof safety glass or heavy-duty Polycarbonate. • Dial Face: White aluminum background with dual graduation lines (Outer scale black, Inner scale typically red/blue). • Pointer: Black aluminum, often equipped with a micro-zero adjustment feature • Outer Case & Bezel: Stainless Steel 304 (or upgraded SS316) featuring a robust bayonet or crimped ring locking system. • Bourdon Tube (Sensing Element): Stainless Steel 316L (C-type tube geometry). • Movement Mechanism: Stainless Steel 304 / 316 to eliminate premature gear wear. • Socket / Shank / Process Connection: Stainless Steel 316 (wetted parts) for maximum chemical resistance • Pressure Range: 0 to 300 PSI (frequently paired with a dual metric scale of 0 to 21 Kg/cm² or 0 to 21 Bar). • Accuracy Class: Class 1.0 (±1.0% of Full Scale Deflection / FSD) or Class 1.6 (±1.6% FSD). • Overpressure Limit: Typically 130% of the maximum scale value for short durations

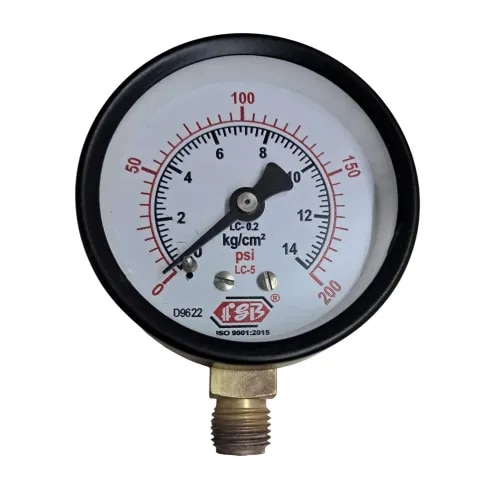

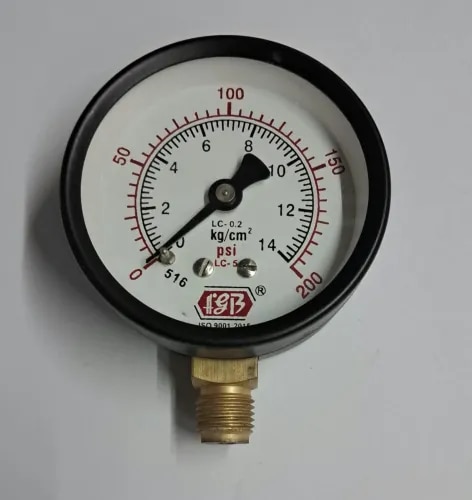

21/2'' DIAL0-200 PSI 1/4 BSP BOTTOM MS CASING INT BRASS
• Dial Size: 2 1/2 inches (approximately 63 mm) • Pressure Range: 0 to 200 PSI (with dual-scale equivalent of 0 to 14 kg/cm² or bar) • Mounting Position: Direct bottom entry (lower mount) for vertical installation • Connection Type: 1/4" BSP (British Standard Pipe) male thread • Case Material: Mild Steel (MS) casting/casing with a protective black coating • Internal / Wetted Parts: Brass socket, movement, and copper alloy Bourdon tube • Accuracy Class: ±2% to ±3% of full scale span (standard commercial/industrial grade) • Window / Lens: Clear plain glass or acrylic • Design Type: Dry type (non-liquid filled) configuration • Suitable for measuring pressure in systems using media that are non-corrosive to brass and mild steel. • Commonly used in air compressors, pneumatic lines, water tanks, and general industrial piping.

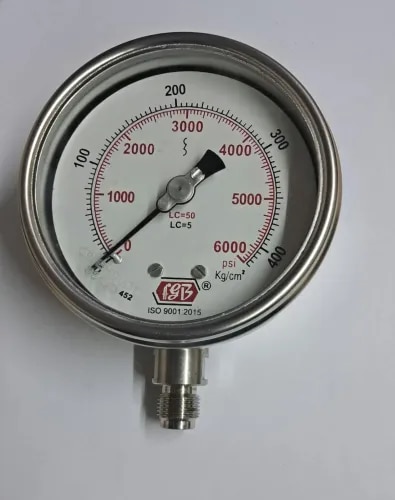

4'' DIAL0-6000 PSI 1/2 BSP BOTTOM COMPLETE SS
• Dial Size: 4 inches (100 mm) • Pressure Range: 0 to 6,000 PSI (Commonly features a dual scale: 0 to 420 kg/cm² or Bar Process Connection: 1/2" BSP (British Standard Pipe) Male thread Direct mounting, Lower / Bottom entry Material of Construction (Complete SS):• Case / Body: Stainless Steel 304 (typically Bayonet lock type or crimped) • Wetted Parts (Socket & Sensing Element): Stainless Steel 316 / 316L (ideal for heavy-duty industrial and corrosive media) • Movement Mechanism: Stainless Steel 304/316 Sensing Element: Stainless steel Bourdon tube (C-type or coiled safety tube) Accuracy: Typically ±1.0% to ±1.6% Full Scale Deflection (FSD) conforming to international class standards Window/Lens: Instrument shatterproof glass or poly carbonate Case Filling: Liquid-fillable (typically supplied filled with Glycerin or Silicone to damp pulsations, absorb system vibrations, and lubricate moving internal parts
